Installation
A lot of design time went into this system to insure an easy and efficient installation.

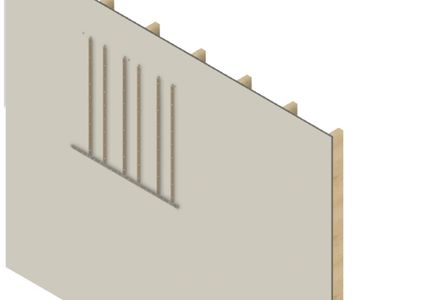

Begin by attaching the bottom horizontal bar to the wall using at least 2 studs.
Vertical Bars
Insert the vertical bar's tongue into the groove on the horizontal and fasten with 4-40 screw.
Upper Horizontal
The tongues on the top of the vertical bars neatly fit into the grooves on the back of the horizontal. Then fasten the horizontal into at least two studs.
Cover Plate
The Cover Plate goes over the aluminum bars. The bigger gap from edge to hole will be on the left.
Pegs
The pegs screw into the vertical bars and hold the cover plate on to the structure.

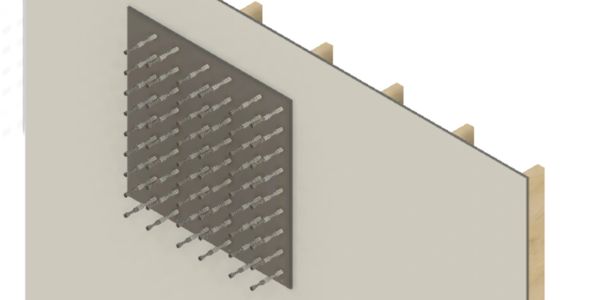

Just Add Wine
The rack is now complete and ready for the wine. The rubber rings on the pegs prevent the bottle from moving.
